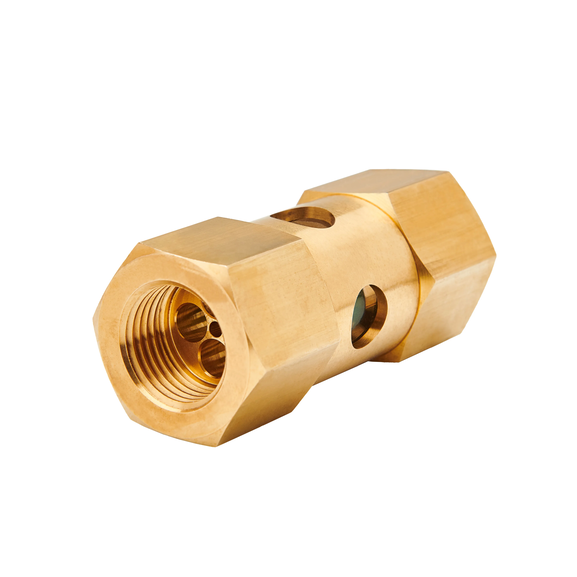

8929 Ball check valve with sight-glass
Specifications

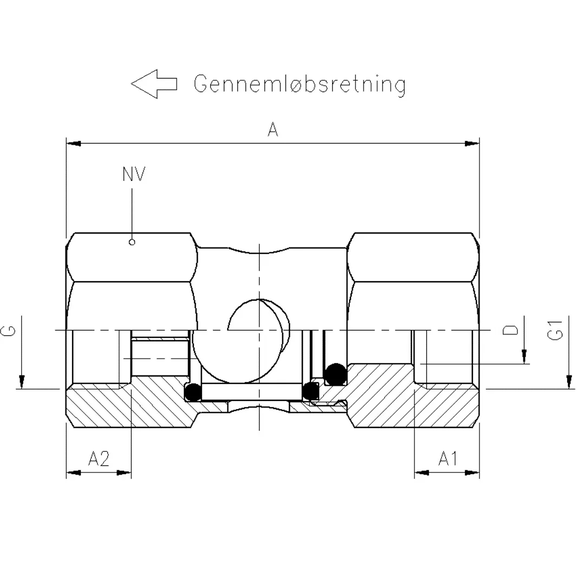

| Item number: | Thread Rp | Thread Rp1 | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 8929P 1/2x1/2 | 1/2 | 1/2 | 73,5 | 11,5 | 11,5 | 30 |
| 8929P-30 1x1 | 1 | 1 | 104 | 14,0 | 14,0 | 46 |
| 8929P-60 1x1 | 1 | 1 | 104 | 14 | 14 | 46 |
About the product
Ball check valve with sight glass.
Material, body: Brass, CW614N
Valve ball: PP (Item#: 8919P), or PTFE (Item#: 8919T)
O-ring: NBR (other materials on request)
On request the ball check valves can be manufactured in the following materials:
· Titanium (Item#: 8919x-60)
· Hastelloy (Item#: 8919x-50)
· Super duplex (Item#: 8919x-30)
Valve can be supplied with FDA approval on request
Valve can be supplied for flanges on request.
Only valid in vertical rising flow direction.
