1020B-316 Stainless Steel Check valve
Specifications

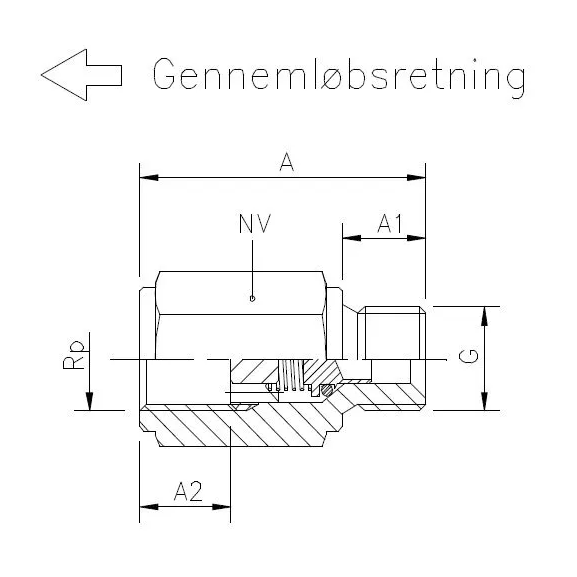

| Item number: | Thread G | Opening diff. pres. water column | Thread Rp | Max. working pres. | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|---|---|
| 1020B-316 1/4x1/4 | 1/4 | 900+-100 | 1/4 | 40,0 | 36,0 | 10,5 | 11,5 | 19 |
About the product

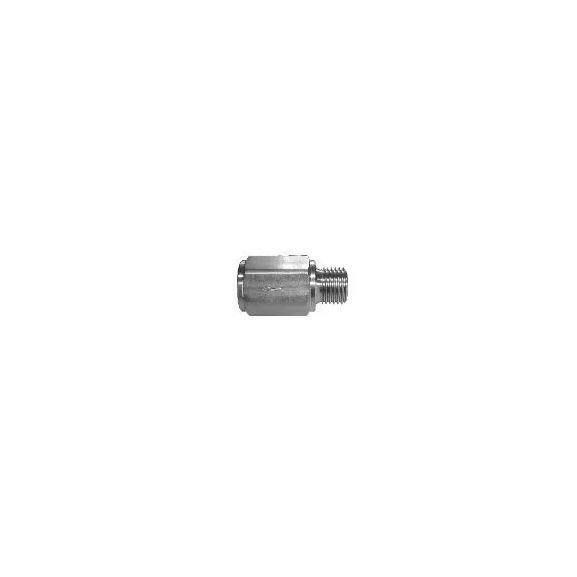

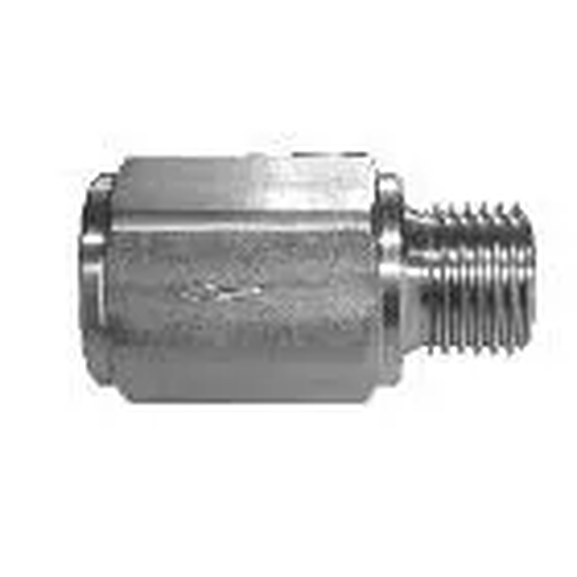

Stainless Steel Check valve with female parallel pipe thread and male parallel pipe thread.The valves can be delivered with 0,9 bar opening pressure after agreement.
