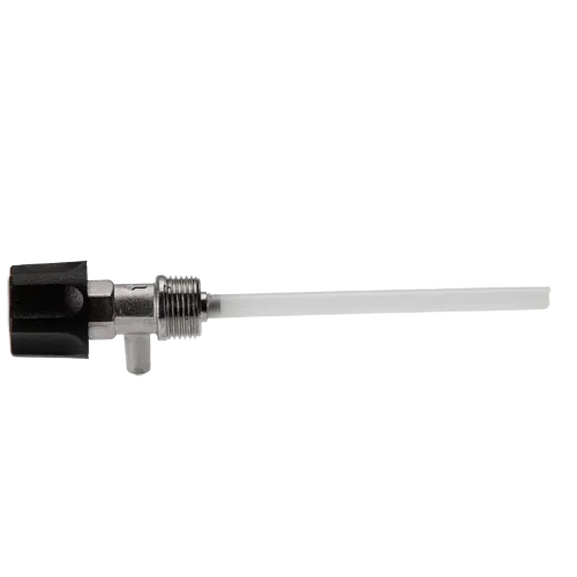

5102 Mini valve with nylon pipe

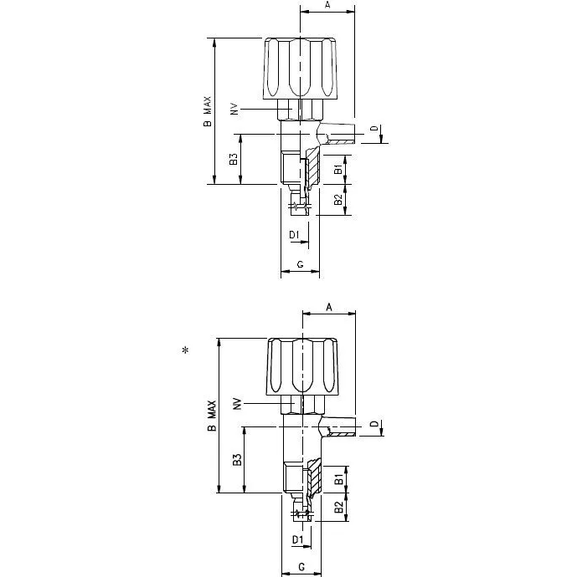

Specifications
Item number:
Thread G
Tube O.D. D1 mm
Dia. D mm
Tube length mm
A
B1
B2
B2
HEX
B max
5102 1/4x500**
1/4
6
6
500
18,0
10,0
500
19,0
14
47
About the product
Mini valve with nylon pipe and parallel pipe thread.
Delivered nicklplated.
Seat seal: EPDM o-ring
Spindle seal: EPDM o-ring
Max. working pressure: 15 bar
Usable in the temperature range -40°C to +125°C.
** On request.
