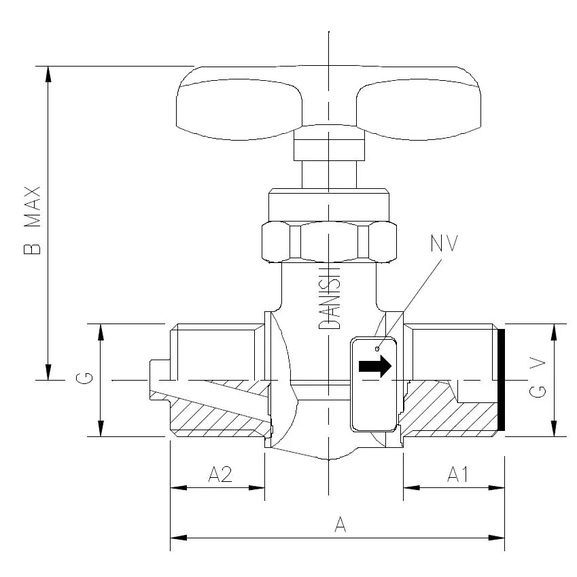

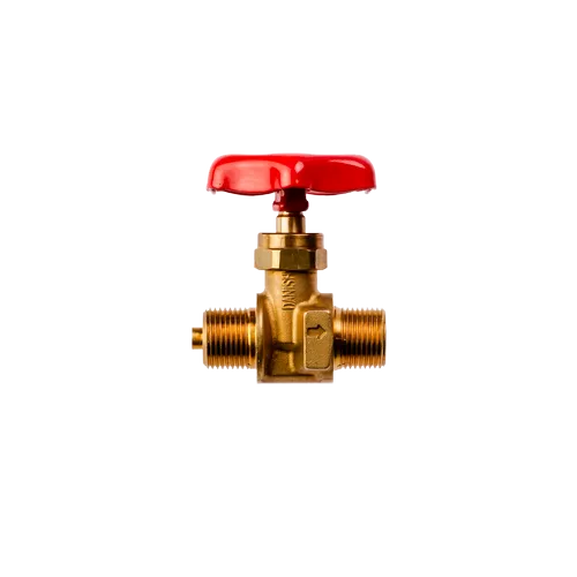

5200-23-A Valve for manometer
Specifications
Item number:
Thread G
Thread G L
A
A1
A2
HEX
B max
5200-23-A
3/8
3/8
51,5
14,0
14,0
21
52
About the product
Valve for manometer with parallel thread.
GV = left thread
Delivered with PTFE spindle gasket, plange gasket and steel handle.
Max. working pressure: 64 bar
Usable in the temperature range: 0°C to +120°C.
