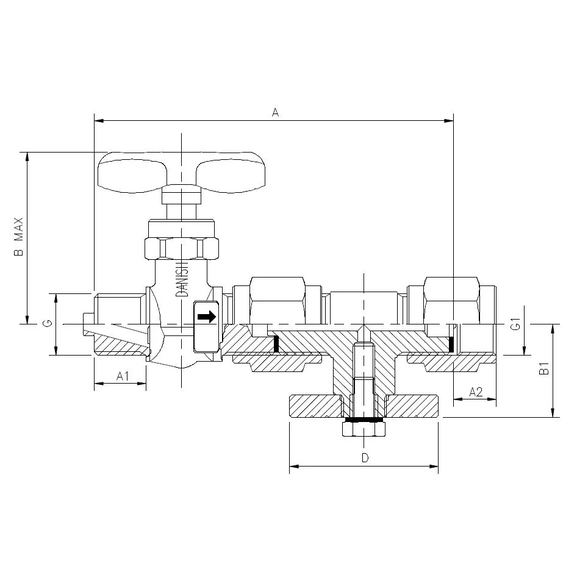

5200-23 Manometer valve
Specifications
| Item number: | Thread G | Thread G1 | Dia. of flange | A | A1 | A2 | B1 | B max |
|---|---|---|---|---|---|---|---|---|
| 5200-23 3/8x3/8 | 3/8 | 3/8 | 40,0 | 102,5 | 14,0 | 12,0 | 25,0 | 52 |
About the product
Manometer valve with parallel pipe thread.Delivered with PTFE spindle gasket, flange gasket and steel handle.
Max. working pressure: 64 bar
Usable in the temperature range: 0°C to +120°C.
