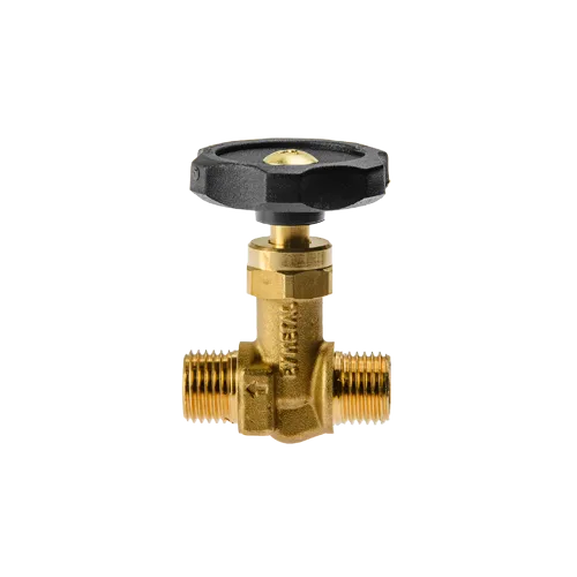

5200-18 Needle valve
Specifications

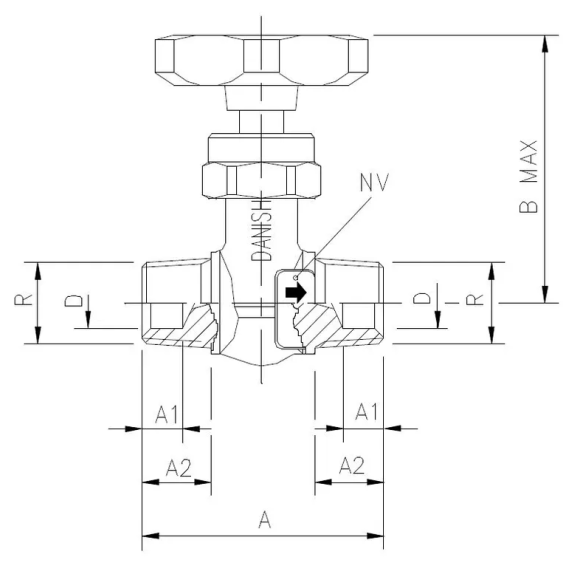

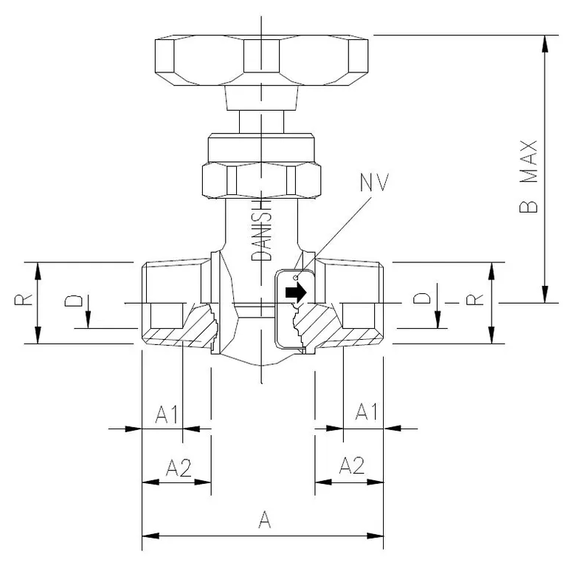

| Item number: | A | A1 | HEX | Thread R | Thread R | A2 | Tube O.D. D | B max |
|---|---|---|---|---|---|---|---|---|
| 5200-18 1/8x1/8 | 38,0 | 5,0 | 17 | 1/8 | 1/8 | 10,0 | 5 | 48 |
| 5200-18 1/4x1/4 | 40,0 | 5,5 | 17 | 1/4 | 1/4 | 12,0 | 8 | 48 |
| 5200-18 3/8x3/8 | 46,0 | 6,5 | 21 | 3/8 | 3/8 | 13,0 | 10 | 52 |
| 5200-18 1/2x1/2 | 52,0 | 10,0 | 25 | 1/2 | 1/2 | 16,5 | 14 | 53 |
About the product
Needle valve with male pipe thread.Delivered with teflon gasket.
