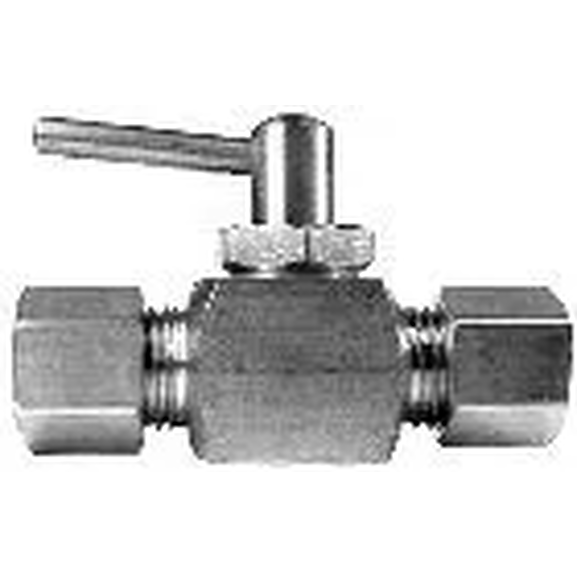

6644 Shut off cock for compression
Specifications
| Item number: | Tube O.D. D | Tube O.D. D1 mm | A | A1 | A2 | A3 | B | HEX |
|---|---|---|---|---|---|---|---|---|
| 6644 6x8 | 6 | 8 | 41,5 | 9,0 | 10,0 | 30,5 | 26,0 | 18 |
| 6644 8x8 | 8 | 8 | 44,0 | 10,0 | 10,0 | 30,5 | 26,0 | 18 |
| 6644 8x10 | 8 | 10 | 46,0 | 10,0 | 11,0 | 30,5 | 26,0 | 18 |
| 6644 10x10 | 10 | 10 | 48,0 | 11,0 | 11,0 | 30,5 | 26,0 | 18 |
About the product

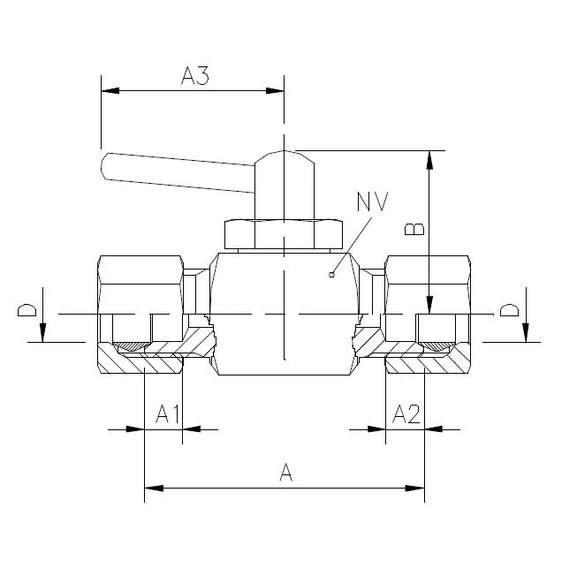

Shut off cock for compression.The shut off cock is on the drawing shown as open.
Delivered with sleeve 60F and nut 194B.
