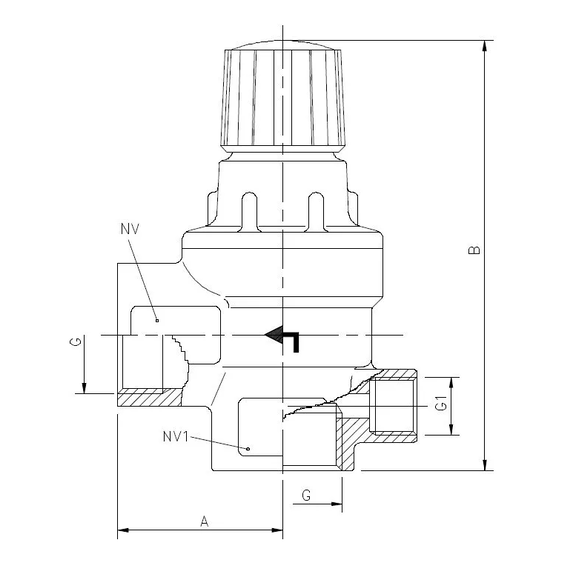

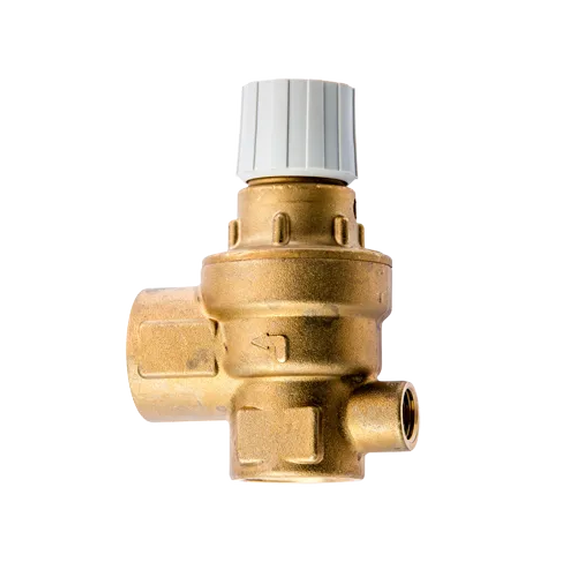

43 2215 Safety valves with manometer port connection
Specifications
| Item number: | Set pres. bar | Thread G | Thread G1 | VVS code xxx | A | B | HEX | HEX1 |
|---|---|---|---|---|---|---|---|---|
| 43 2215 036 | 1,0 | 3/4 | 1/4 | 036 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 136 | 1,5 | 3/4 | 1/4 | 136 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 236 | 2,0 | 3/4 | 1/4 | 236 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 336 | 2,5 | 3/4 | 1/4 | 336 | 36,5 | 94,5 | 32 | 32 |
| 43 2215 436 | 3,0 | 3/4 | 1/4 | 436 | 36,5 | 94,5 | 32 | 32 |
About the product
Safety valve with manometer port connection and with female parallel pipe thread.Opening pressure from 1-3 bar.
