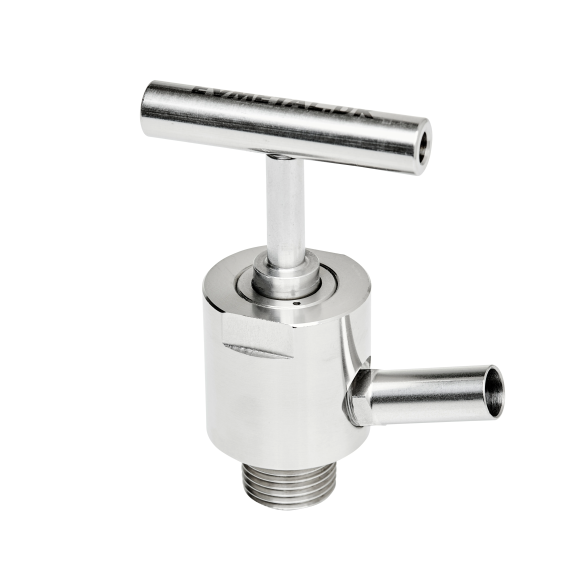

Sampling valve

About the product

Operation principle:
The sampling valve enables you safely and accurately handling of the fluids for testings and analysis purposes. Either to be carried out instantly at site or to be stored for laboratory tests.


Product data:
Valve size: DN15
Valve size (outlet pipe bore): Ø10mm
Design pressure: 10 bar
Design temperature: -20°C to +130°C
Medium/fluid: Water (H2O)
(Special inlets and outlets can be ordered upon request)

Materials:
Body material: AISI 303
Outlet pipe: AISI 316L
O-ring: EPDM75
Guide/Back-up ring: AISI 303
Handle: AISI 316L
(Other materials can be ordered upon request)

Tests & Documentation:
Marking (body / handle): Laser marking
Material certificate: EN 10204-3.1

Pressure test (1,5x PN w. water)
Leak test (0,5 barG w. air & water)

Pressure test certificate
Leak test certificate
(Other tests & documentation can be ordered upon request)

For more details, see the data sheet below and do not hesitate to contact us hereon.
