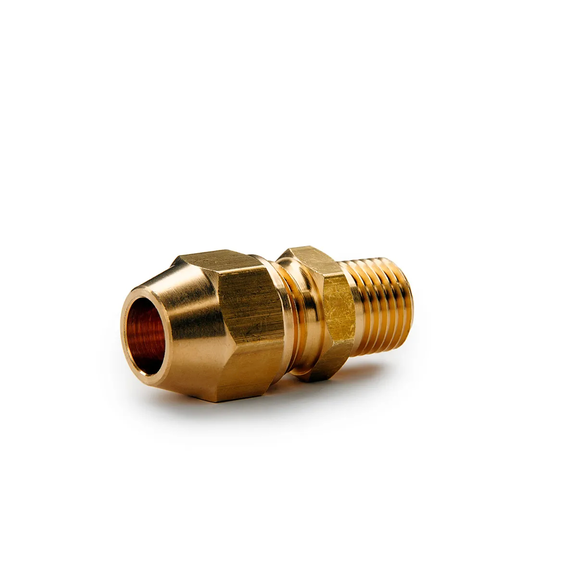

48F Nipple with NPT thread
Specifications

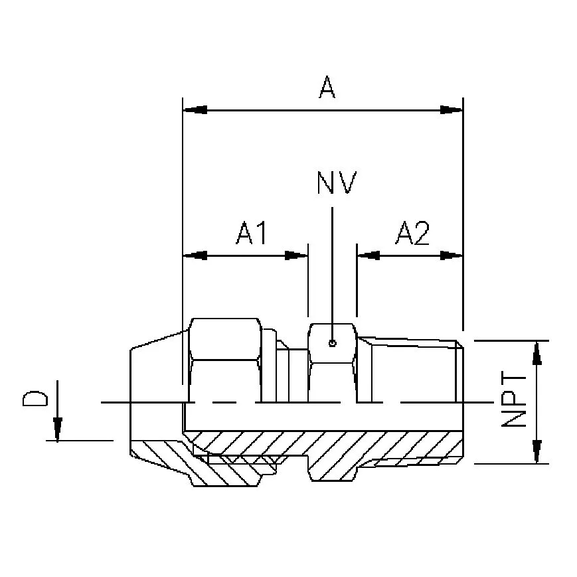

| Item number: | Tube O.D. D mm/inch. | Thread NPT | A | A1 | A2 | HEX |
|---|---|---|---|---|---|---|
| 48F 10x1/8N | 10 (3/8) | 1/8N | 29,7 | 14,7 | 10,0 | 16 |
| 48F 10x1/4N | 10 (3/8) | 1/4N | 30,7 | 14,7 | 11,0 | 16 |
