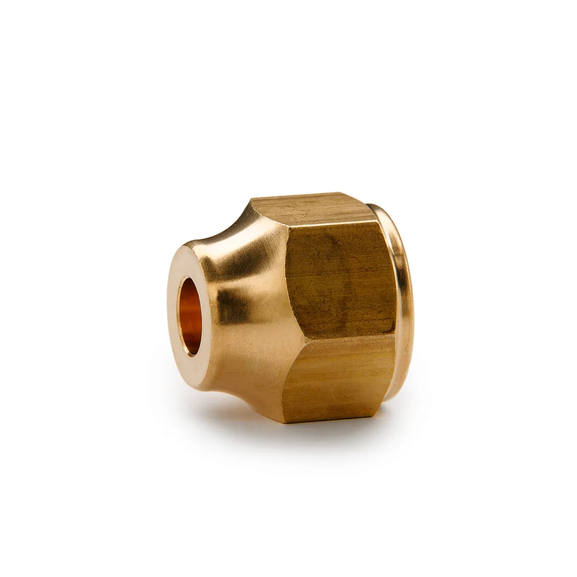

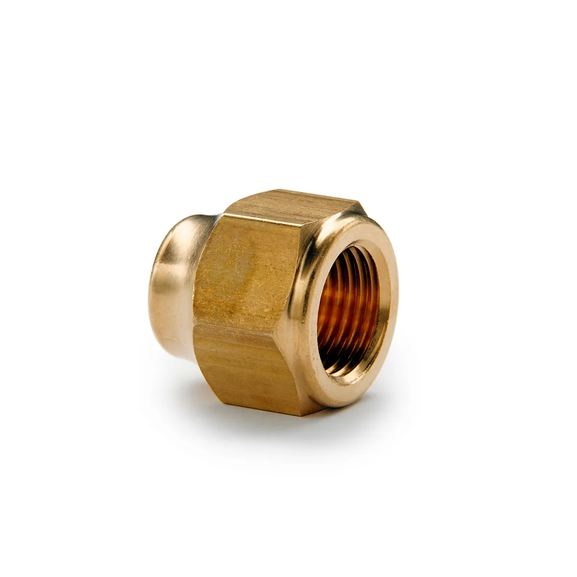

41FR Heavy nut with reduction
Specifications

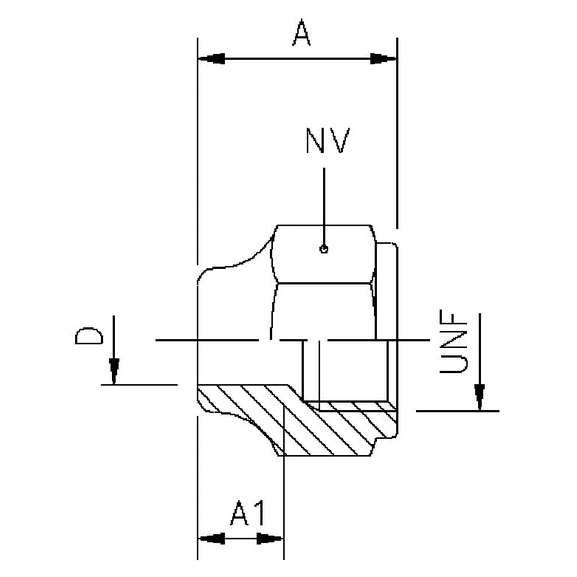

| Item number: | A | A1 | HEX | Thread UNF | Tube O.D. D mm |
|---|---|---|---|---|---|
| 41FR 6-5 | 16,0 | 6,8 | 16 | 7/16-20 | 6-5 |
| 41FR 8-5 | 18,0 | 7,8 | 18 | 1/2-20 | 8-5 |
| 41FR 8-6 | 18,0 | 7,8 | 18 | 1/2-20 | 8-6 |
| 41FR 10-8 | 22,0 | 8,5 | 22 | 5/8-18 | 10-8 |
| 41FR 12-10 | 25,0 | 10,0 | 26 | 3/4-16 | 12-10 |
