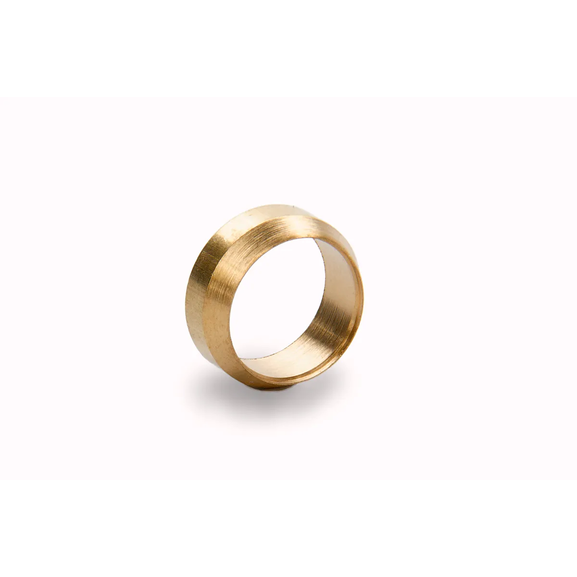

60N Sleeve
Specifications

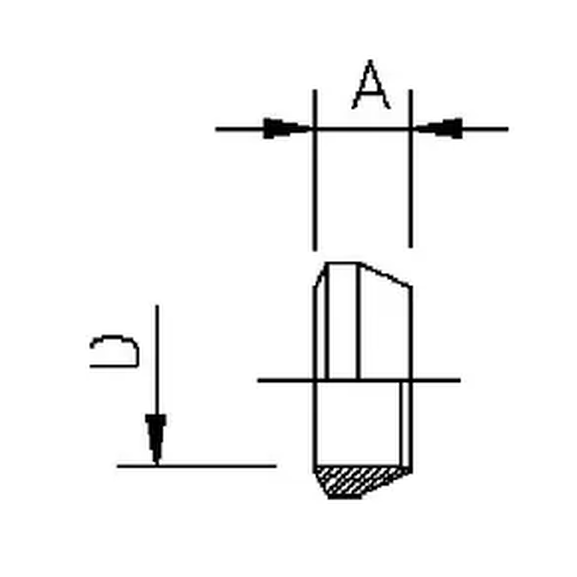

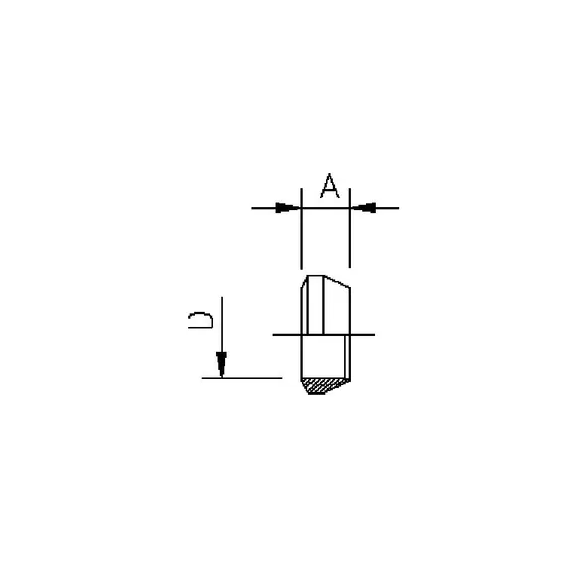

| Item number: | Tube O.D. D mm | VVS code xxx | A |
|---|---|---|---|
| 60N 4 | 4 | 102 | 3,0 |
| 60N 5 | 5 | 103 | 3,5 |
| 60N 6 | 6 | 101 | 4,5 |
| 60N 8 | 8 | 107 | 4,5 |
| 60N 10 | 10 | 116 | 5,0 |
| 60N 12 | 12 | 132 | 6,0 |
| 60N 15** | 15 | ||
| 60N 16 | 16 | 135 | 6,5 |
| 60N 20 | 20 | 136 | 7,0 |
About the product
Sleeve for nylon in mm.VVS code: 368550-xxx
The 60N sleeve is drawn over the pipe so the long end faces into the fittings and the short end faces into the nut.
