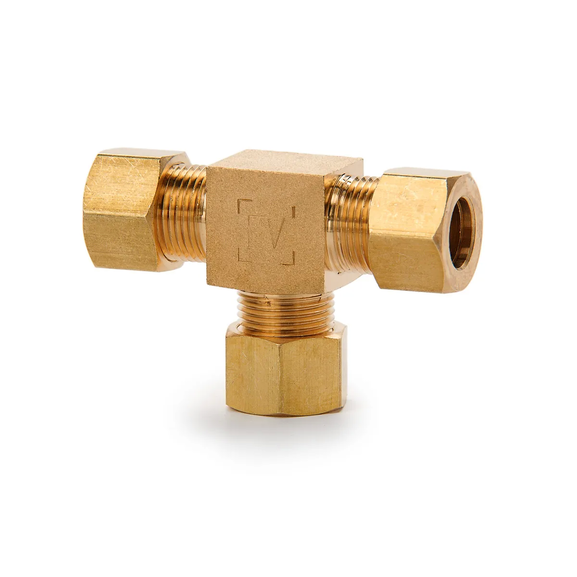

64F Tee
Specifications

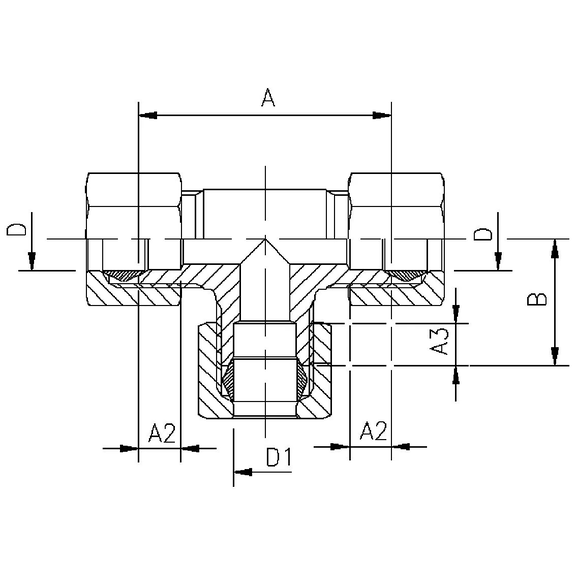

| Item number: | VVS code xxx | A | A2 | B | Tube O.D. D mm | Tube O.D. D1 mm | A3 |
|---|---|---|---|---|---|---|---|
| 64F 3 | 003 | 30,0 | 5,0 | 15,0 | 3 | 3 | 5,0 |
| 64F 4 | 004 | 30,0 | 5,0 | 15,0 | 4 | 4 | 5,0 |
| 64F 5 | 005 | 32,0 | 5,0 | 16,0 | 5 | 5 | 5,0 |
| 64F 6 | 006 | 33,0 | 5,5 | 16,5 | 6 | 6 | 5,5 |
| 64F 8 | 008 | 34,0 | 5,5 | 17,0 | 8 | 8 | 5,5 |
| 64F 10 | 010 | 41,0 | 6,0 | 21,0 | 10 | 10 | 6,0 |
| 64F 12 | 012 | 39,0 | 7,0 | 19,5 | 12 | 12 | 7,0 |
About the product
Tee with sleeves and nuts for pipe in mm.VVS code: 044530-xxx
