1028B Hose barb adapter elbow 45°
Specifications

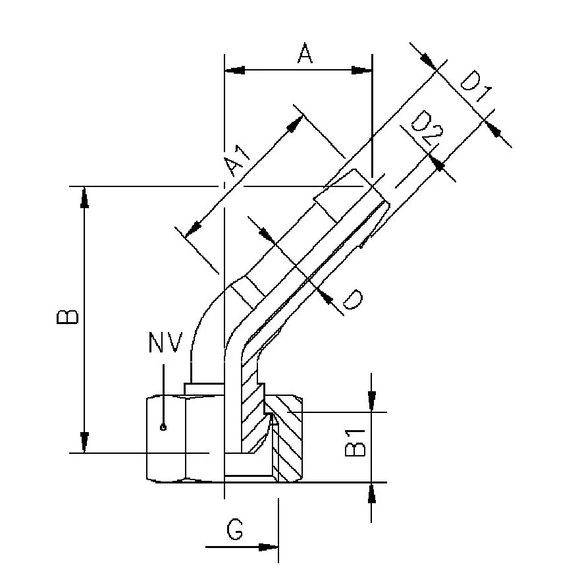

| Item number: | A | A1 | HEX | B | B1 | Thread G | Dia. D1 | Dia D. | Hose I.D. mm | Hose I.D. inch. | Dia. D2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1028B 1/4x6 45 | 18,0 | 20,0 | 15 | 37,0 | 8,5 | 1/4 | 8,0 | 8,0 | 6 45 | 1/4 | 4,1 |
| 1028B 3/8x10 45** | 18,0 | 20,0 | 19 | 44,0 | 10,0 | 3/8 | 11,8 | 10,5 | 10 45 | 3/8 | 7,0 |
About the product

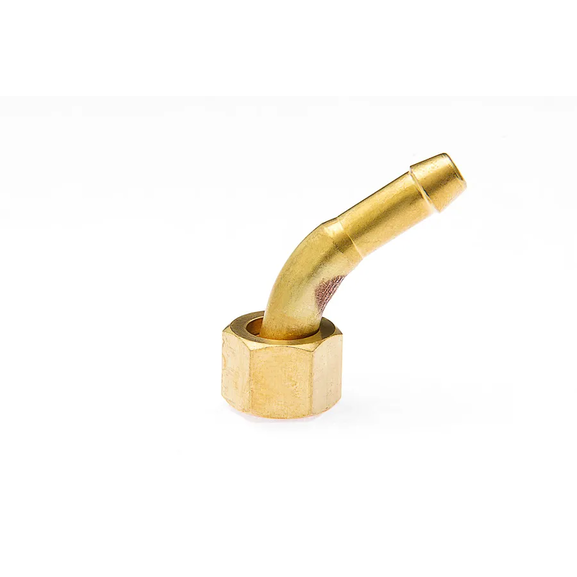

Hose barb adapter elbow 45° with cone. Delivered with nut with parallel pipe thread.**On request.
