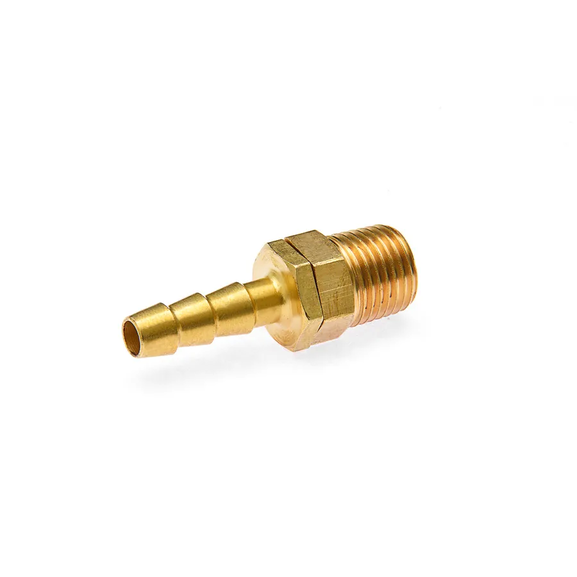

1004BR Hose barb adapter with swivel

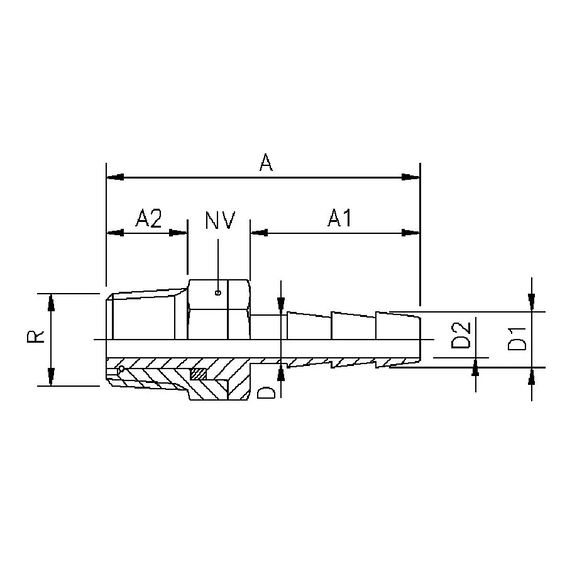

Specifications
Item number:
Thread R
Hose I.D. mm
Hose I.D. inch.
Dia D.
Dia. D1
Dia. D2
A
A1
A2
HEX
1004BR 1/4x6
1/4
6
1/4
6,4
7,4
4,5
39,5
20,0
16,5
14
About the product
Hose barb adapter with swivel with pipe thread.
Delivered with O-ring NBR 70 shore A. Temperature from -25°C to +80°C.
Max. working pres: 10 bar
