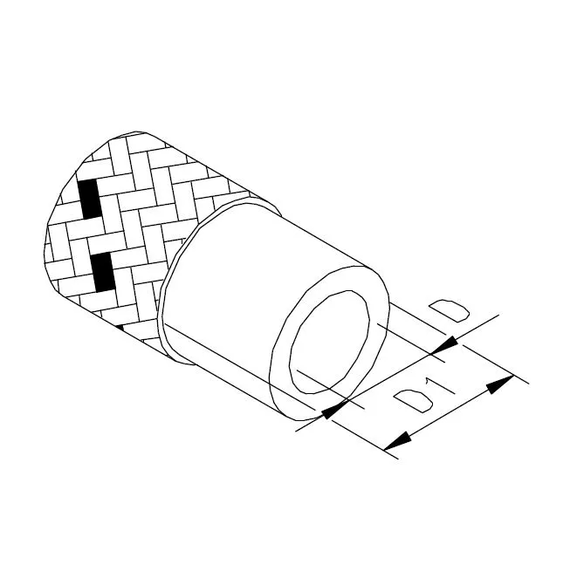

NITRIL HOSE with zincplated wire
Specifications
| Item number: | Size. | D mm | D1 mm | Max. working pres. bar |
|---|---|---|---|---|
| 010 A | 010 A | 10 | 16 | 25 |
| 012 A | 012 A | 12 | 17,5 | 25 |
| 006 A | 006 A | 6,5 | 10,5 | 25 |
| 004 A | 004 A | 4 | 9,7 | 25 |
| 008 A | 008 A | 8 | 13 | 25 |
About the product
Material: Nitril SHORE 74Wire: Soft zincplated ionwire
Characteristic: Black marking
Usable in the temperature range -35°C - +70°C.
Nitril hoses are gas- and oilresistant (not unleaded).
Examples of use: Pressure- and suction hose for oil burner, oil- and gas hoses, compressed air, oil- and grease lubrication.
