PTFE HOSE

PTFE HOSE

Specifications

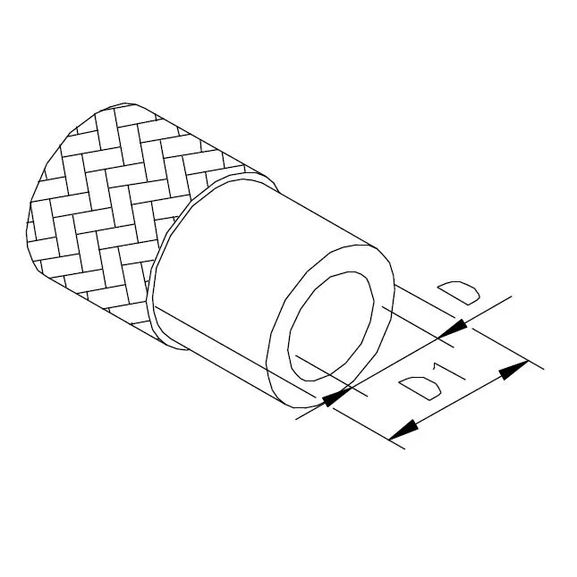

Item number: Size. D mm D1 mm Max. working pres. bar
008 T 008 T 8 10,5 150*
012 T 012 T 12,7 16 110*
010 T 010 T 10 13 140*
006 T 006 T 6,5 9,7 200*

About the product

Material: Ekstrudet  PTFE
Wire: Stainless wire AISI304
Usable in the temperature range:  -75°C - +230°C

* Notice: The working pressure depends highly on the type of adapter.

PTFE hose is chemical resistant and is suitable in a very wide area of pressure and temperature. The teflon hose is aging very slowly. Because of its resistance almost only melted alkali metals and flour are not suitable for use with teflon.

Examples of use: Steam - and air conditioning stations, freezing, cooling and carbonated devises, food devises, aggressive media.
