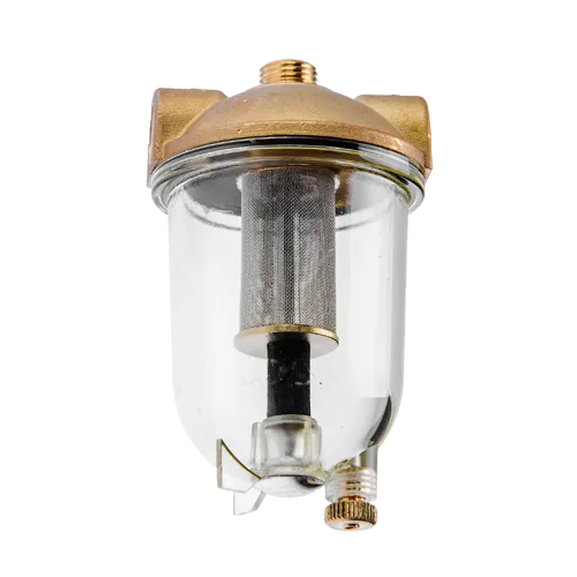

1024 Oil filter with RS filter
Specifications

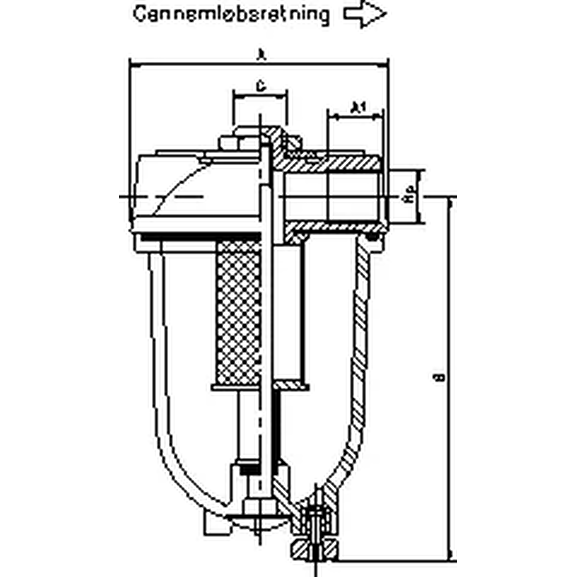

| Item number: | Thread G | Thread Rp | VVS code xxx | A | A1 | B |
|---|---|---|---|---|---|---|
| 1024 1/4 | 1/4 | 1/4 | 102 | 61,0 | 11,0 | 88,5 |
About the product
Oil filter with RS filter and drain at the bottom.Material:
Cup: Trogamid-T
Filter top: DIN 17660 CuZn39Pb3
Spacer: NBR 60 shore A
Filter: AISI316
Washer: Steel, zincplated
O-ring: NBR 70 shore A
Drain screw: DIN 17660 CuZn39Pb3
Connector: DIN 17660 CuZn39Pb3
Plug: Steel, zincplated
Wall console: St. 1203, zincplated
Lock nut: DIN 17660 CuZn39Pb3
Filtering area: 22 cm²
Filtration: 250 µ
