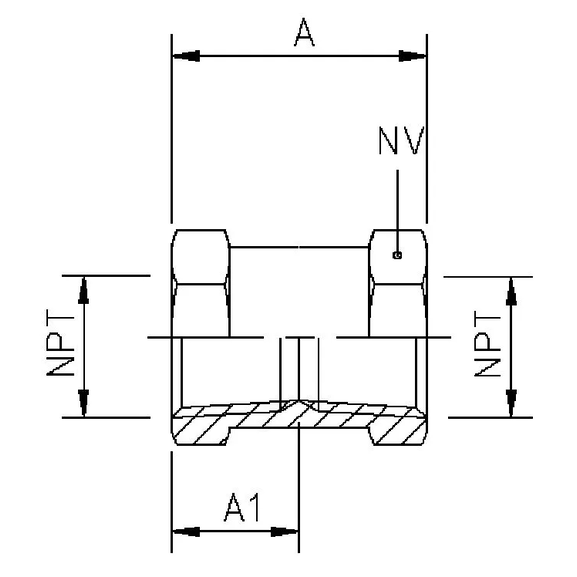

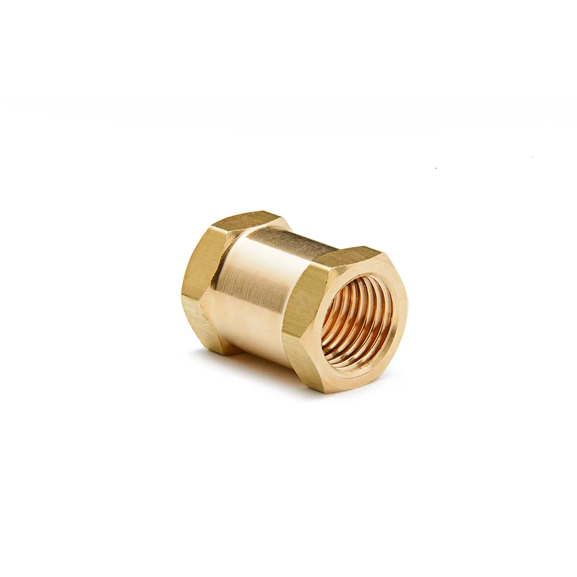

103B Conical coupling with NPT thread
Specifications
| Item number: | Thread NPT | A | A1 | HEX |
|---|---|---|---|---|
| 103B 1/8N | 1/8N | 20,0 | 10,0 | 13 |
| 103B 1/4N | 1/4N | 28,0 | 10,0 | 19 |
| 103B 3/8N | 3/8N | 28,0 | 10,0 | 22 |
