Item number: | A | B | C | D | E | F | G | H | CH | N |
---|---|---|---|---|---|---|---|---|---|---|
K-AKT A052S-K12 | 148 | 30 | 41,0 | 92 | 72 | 20 | 10 | 14 | 11 | 80 |
K-AKT A063S-K12 | 169 | 36 | 47,0 | 107,7 | 87,7 | 27 | 10 | 18 | 14 | 80 |
K-AKT A075S-K12 | 185 | 42 | 52,4 | 119,4 | 99,4 | 27 | 10 | 18 | 14 | 80 |
K-AKT A083S-K12 | 205 | 46,2 | 54,4 | 128,6 | 108,6 | 27 | 10 | 21 | 17 | 80 |
K-AKT A092S-K12 | 263 | 50 | 58,0 | 137 | 117 | 34 | 14 | 21 | 17 | 80 |
K-AKT A105S-K12 | 269 | 57,5 | 63,8 | 152,8 | 132,8 | 34 | 14 | 26 | 27 | 80 |
K-AKT A125S-K12 | 301 | 67,7 | 74,0 | 184,7 | 154,7 | 45 | 22 | 26 | 27 | 130 |
K-AKT A140S-K12 | 392 | 75 | 75,0 | 202 | 172 | 50 | 22 | 31 | 27 | 130 |
K-AKT A160S-K12 | 460 | 87,5 | 87,5 | 226 | 196 | 50 | 22 | 31 | 27 | 130 |
K-AKT A190S-K12 | 527 | 103 | 103,0 | 260 | 230 | 72 | 32 | 40 | 36 | 130 |
K-AKT A210S-K12 | 534 | 113 | 113,0 | 285 | 255 | 72 | 32 | 40 | 36 | 130 |
K-AKT A240S-K12 | 605 | 130 | 130,0 | 130 | 290 | 72 | 32 | 50 | 46 | 130 |
K-AKT A270S-K12 | 725 | 146,5 | 146,5 | 364 | 334 | 72 | 32 | 50 | 46 | 130 |

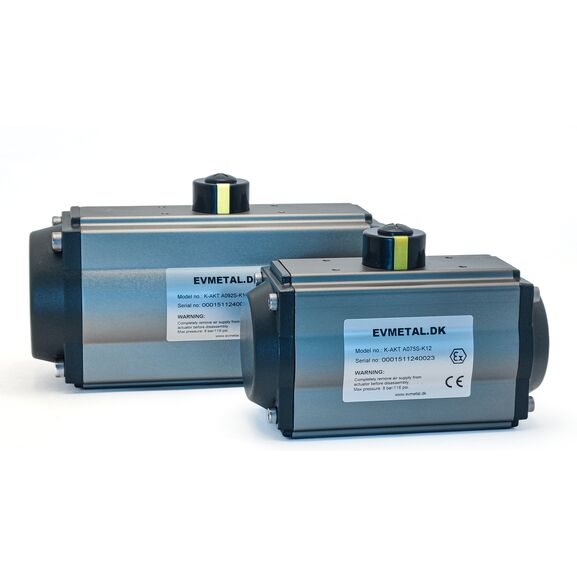

EV Metalværk® has a wide range of high quality pneumatic actuators available in stock.
It is important that the power-span (torque) of the actuator is correct and sufficient in order to operating the ball valve correctly. Therefore the opening torque of your ball valve must be determined before ordering a certain actuator size from the above list.
All actuators are ATEX approved. ATEX certificate is not standard and must be ordered separately.
Please don´t hesitate to contact us for further information!
