Ball Valve 1/2" PN300 with Actuator and Switchbox
Specifications
| Article number | Material | Dimension | Connection ends | Valve bore | Pressure | tMin | tMax | Operation style | Gasket material | O-ring material | Connection type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2770+003AKT | AISI304 | DN15 - 1/2" | DN15 - 1/2" | DN15 - 1/2" | 300 | -15 | 180 | Pneumatic Act./Switchbox | PEEK | FPM | Int. BSPP |
| 2770+035AKT | AISI304 | DN15 - 1/2" | DN15 - 1/2" | DN15 - 1/2" | 300 | -15 | 180 | Pneumatic Act./Switchbox | PEEK | FPM | Ext. BSPP |
About the product

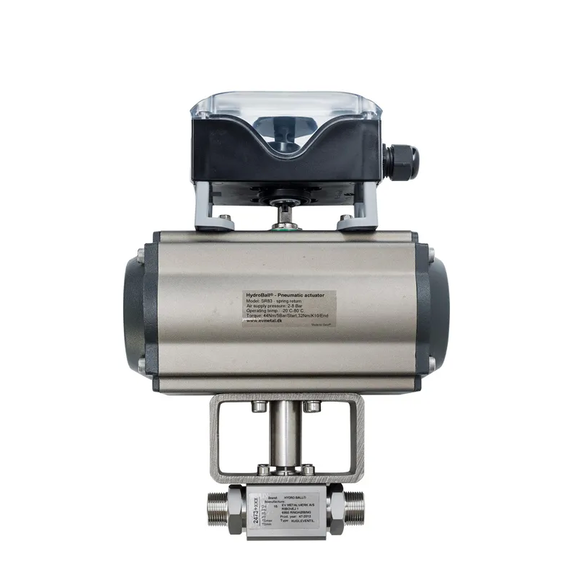

The valve is shown in full configuration and with external BSPP thread.
