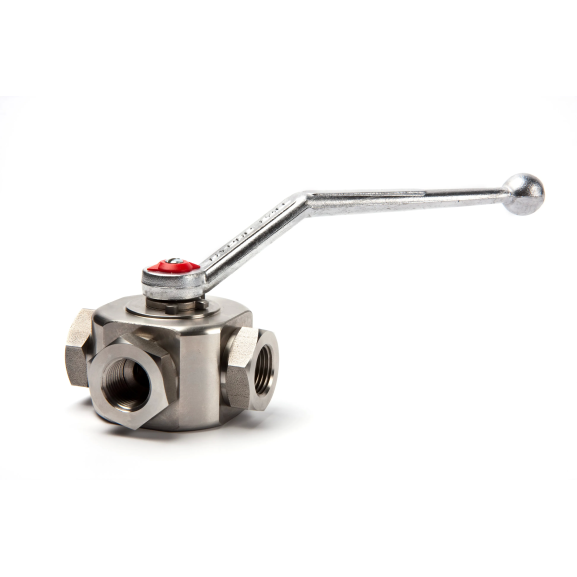

3-Way Ball Valve 3/8" M22X1,5 with T-Bore
Specifications
| Article number | Valve type | Bore type | Material | Dimension | Valve bore | Pressure | Tmin | Tmax | Operation style | Gasket material | O-ring material | Connection type | Connection ends |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2473+00302 | 3 WAY BALL VALVE | T-Bore | AISI316 | DN10 - 3/8" | DN15 - 1/2" | 300 | -15 | 180 | Without Actuator | PEEK TF10 | FPM | Light duty (L) | 14 mm pipe - M22x1,5 |
About the product
3-WAY 3/8" M22X1,5 T-BORE
