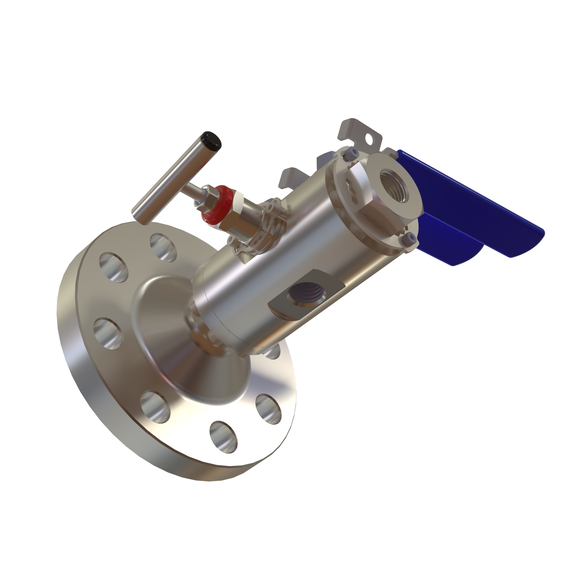

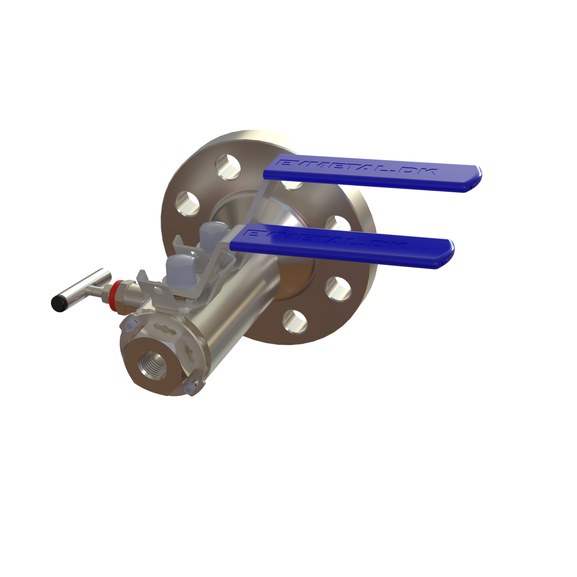

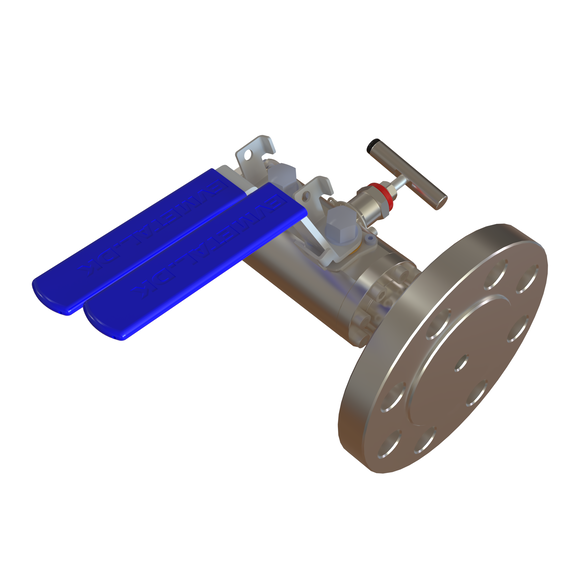

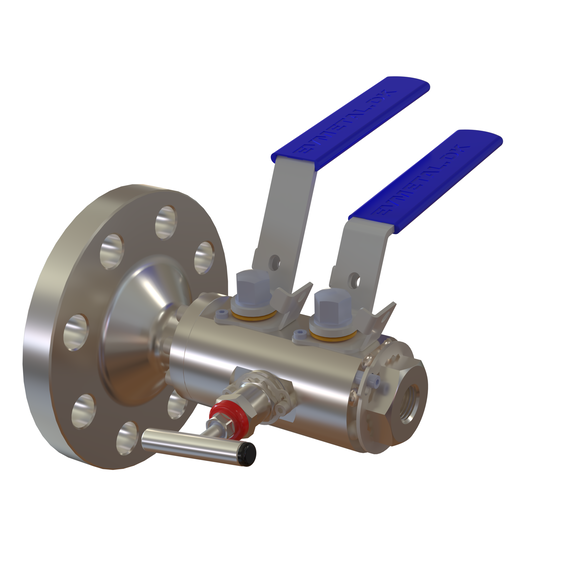

Flanged DBB valve
Specifications
| ANSI Class | Dimension | Connection, Inlet | Connection, Outlet | Drain | Material | Article number |
|---|---|---|---|---|---|---|
| 150 | 1/2" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#150 1/2RFx3/4NPT |
| 150 | 3/4" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#150 3/4RFx3/4NPT |
| 150 | 1" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#150 1RFx3/4NPT |
| 150 | 2" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#150 2RFx3/4NPT |
| 300 | 1/2" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#300 1/2RFx3/4NPT |
| 300 | 3/4" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#300 3/4RFx3/4NPT |
| 300 | 1" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#300 1RFx3/4NPT |
| 300 | 2" | RF | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#300 2RFx3/4NPT |
| 600 | 1/2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#600 1/2RTJx3/4NPT |
| 600 | 3/4" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#600 3/4RFx3/4NPT |
| 600 | 1" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30-3/4#600 1RTJxNPT |
| 600 | 2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#600 2RTJx3/4NPT |
| 900 | 1/2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#900 1/2RTJx3/4NPT |
| 900 | 3/4" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#900 3/4RTJx3/4NPT |
| 900 | 1" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#900 1RTJx3/4NPT |
| 900 | 2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#900 2RTJx3/4NPT |
| 1500 | 1/2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#1500 1/2RTJx3/4NPT |
| 1500 | 3/4" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#1500 3/4RTJx3/4NPT |
| 1500 | 1" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30#1500 1RTJx3/4NPT |
| 1500 | 2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | 30-3/4#1500 2RTJxNPT |
| 2500 | 1/2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | Valve is not available |
| 2500 | 3/4" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | Valve is not available |
| 2500 | 1" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | Valve is not available |
| 2500 | 2" | RTJ | 3/4" NPT(F) | 1/2" NPT(F) | Super Duplex (1.4410) | Valve is not available |
About the product
Modular flanged Double Block & Bleed Valves from EV Metalværk is a smart alternative to SDBB Valves when a larger valve bore for a greater flow is needed.
