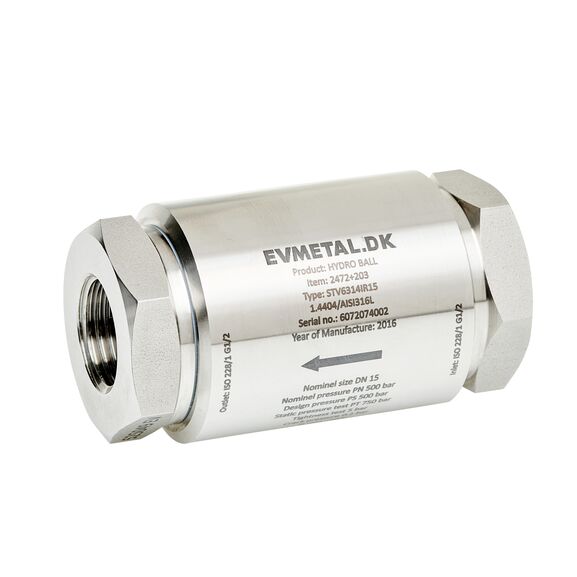

Check Valves with NPT female thread
Specifications
| Article number | Size | Pressure (max) | Conn. Inlet | Conn. Outlet | Material | Temp. (max) | Temp. (Min) | Spring material | Crack pressure | Fluid/Medium |
|---|---|---|---|---|---|---|---|---|---|---|
| 2472+201 | DN6, 1/4" | 6500 Psig | 1/4" NPTF | 1/4" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+202 | DN10, 3/8" | 6500 Psig | 3/8" NPTF | 3/8" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+203 | DN15, 1/2" | 6500 Psig | 1/2" NPTF | 1/2" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+204 | DN20, 3/4" | 6500 Psig | 3/4" NPTF | 3/4" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+205 | DN25, 1" | 6500 Psig | 1" NPTF | 1" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+206 | DN32, 11/4" | 6500 Psig | 11/4" NPTF | 11/4" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+207 | DN40, 11/2" | 6500 Psig | 11/2" NPTF | 11/2" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
| 2472+208 | DN50, 2" | 6500 Psig | 2" NPTF | 2" NPTF | AISI316L (Standard) - Optional | +180 deg. C. | -29 deg. C. | Inconel® | 3 Psig | Oil/Gasseuses |
