Needle valve with bolted bonnet for offshore and wellhead appl.
Needle valve with bolted bonnet for offshore and wellhead appl.
Needle valve with bolted bonnet for offshore and wellhead appl.
Needle valve with bolted bonnet for offshore and wellhead appl. Needle valve with bolted bonnet for offshore and wellhead appl. Needle valve with bolted bonnet for offshore and wellhead appl.

Needle valve with bolted bonnet for offshore and wellhead appl.

Product description:

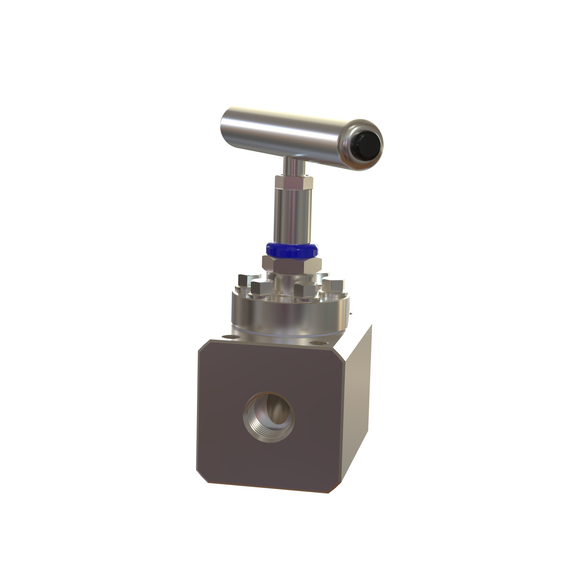

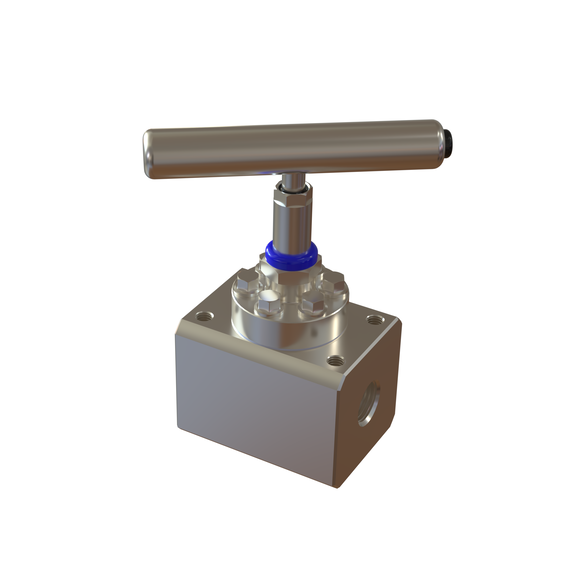

Needle valve with bolted bonnet designed especially for offshore and wellhead applications.
Size: 1/2" NPT female
Max. working pressure: 15.000 psig.
Valve bore: Ø8,0 mm.
Material: AISI 316
Valve type: Bolted Bonnet
Very robust anti-crevice-corrosion design made for offshore applications and wellheads.
Lockable with lock pad (optional)

Specifications

Article number Size Inlet Outlet MAWP Tmin. Tmax. Material T-Bar Valve bore, Ø
1000-809 1/2" 1/2" NPTF 1/2" NPTF 15.000 Psig -20 deg. C. +130 deg. C. AISI 316 Ø10 x 100mm 8,0 mm
