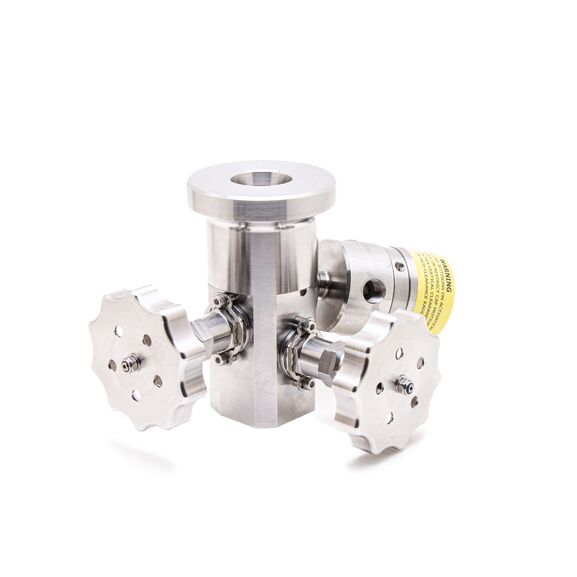

Fire Safety Valve, Double Block
Specifications
| Article number: | Size: | Design Pressure: | Inlet: | Outlet 1&2: | Design temperature | Valve bore: |
|---|---|---|---|---|---|---|
| 1000-542 | 1/2" | 10.000 Psig | Grayloc® 11/2" GR 11 | 1/2"NPTF | -29°C/+130°C | 5,1 mm |
| 1000-543 | 1/2" | 15.000 Psig | Grayloc® 11/2" GR 11 | 1/2"NPTF | -29°C/+130°C | 5,1 mm |
About the product
Type:
Double block needle valve with non-rotating tip.
Antistatic design according to EN 12266-2 F21 and F22.
Design standards:
PED, API 6A, API6D, ASME B16.34, ASME B1.20.1 and according to customer specifications.
Design pressure: 10.000 psig. / 15.000 psig.
Design temperature: -29°C to +130°C.
Inlet connection: Grayloc or similar according to customer specifications.
Outlet connections: Threaded according to customer specifications.
Operation: Round handle Ø50mm or Ø70mm (optional)
Materials: (according to customer specifications):
Austenitic stainless steel type 316.
Ferritic/Austenitic stainless steel type 22Cr (Duplex).
Ferritic/Austenitic stainless steel type 25Cr (Super Duplex)
Please note: Fusible plug is not standard but available according to customers request.
