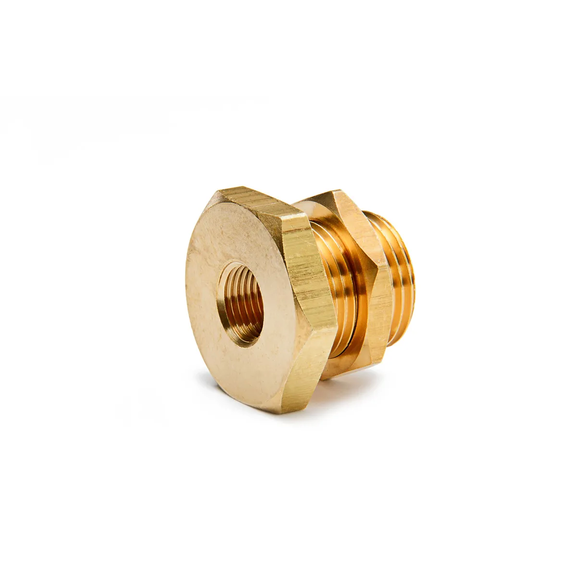

288B Bulkhead coupling
Specifications

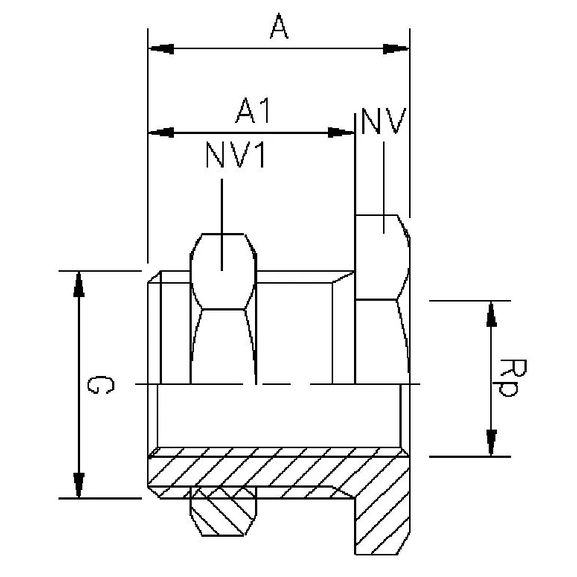

| Item number: | Thread G | Tube O.D. D mm | Thread Rp | A | A1 | HEX | HEX1 |
|---|---|---|---|---|---|---|---|
| 288B 1/8 | 3/8 | 17,0 | 1/8 | 20,0 | 15,0 | 24 | 21 |
| 288B 1/4 | 1/2 | 21,0 | 1/4 | 24,0 | 19,0 | 27 | 24 |
| 288B 3/8 | 3/4 | 27,0 | 3/8 | 26,0 | 20,0 | 34 | 30 |
About the product
Bulkhead coupling with parallel pipe thread.Tube O.D. = necessary bore mm in bulkhead.
Delivered with lock nut 1121B.
