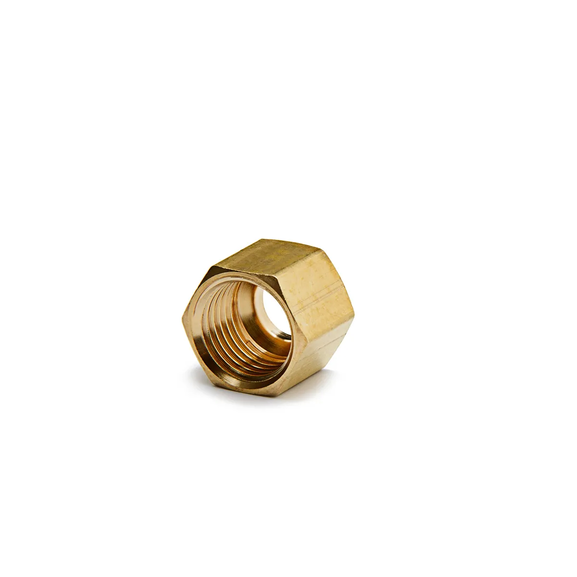

174B Nut for hose barb adapter
Specifications

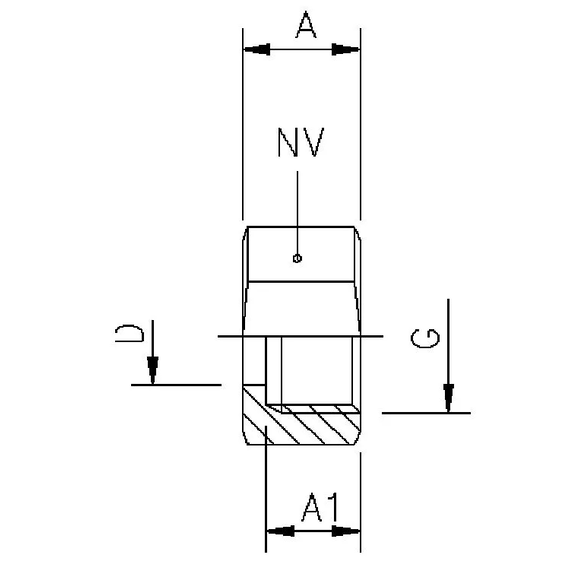

| Item number: | Tube O.D. D mm/inch. | VVS code xxx | A | A1 | HEX | Thread G |
|---|---|---|---|---|---|---|
| 174B 7,5x1/8 | 7,5 | - | 10,0 | 8,0 | - | 1/8 |
| 174B 5x1/8 | 5 (3/16) | 601 | 10,0 | 8,0 | 12 | 1/8 |
| 174B 6x1/8 | 6 (1/4) | 701 | 10,0 | 8,0 | 12 | 1/8 |
| 174B 6x1/4 | 6 (1/4) | 602 | 10,0 | 8,0 | 15 | 1/4 |
| 174B 8x1/4 | 8 (5/16) | 702 | 10,0 | 8,0 | 16 | 1/4 |
| 174B 10x1/4 | 10 (3/8) | 802 | 11,0 | 8,5 | 15 | 1/4 |
| 174B 13x3/8 | 13 | - | 13,0 | 10,0 | - | 3/8 |
| 174B 10x3/8 | 10 (3/8) | 603 | 13,0 | 10,0 | 19 | 3/8 |
| 174B 12x3/8 | 12 (1/2) | 703 | 13,0 | 10,0 | 19 | 3/8 |
| 174B 14x1/2 | 14 | - | 14,0 | 11,0 | - | 1/2 |
| 174B 18x1/2 | 18 | - | 14,0 | 11,0 | - | 1/2 |
| 174B 15x1/2 | 15 | 704 | 14,0 | 11,0 | 24 | 1/2 |
| 174B 16x1/2 | 16 (5/8) | 804 | 14,0 | 11,0 | 24 | 1/2 |
| 174B 20x3/4 | 20 | 706 | 17,0 | 14,0 | 32 | 3/4 |
| 174B 22x3/4 | 22 | 806 | 17,0 | 14,0 | 32 | 3/4 |
| 174B 16x3/4 | 16 (5/8) | 606 | 17,0 | 13.0 | 32 | 3/4 |
| 174B 20x1 | 20 | - | 19,0 | 15,0 | - | 1 |
| 174B 22x1 | 22 | 608 | 18,0 | 15,0 | 38 | 1 |
| 174B 25x1 | 25 | 708 | 18,0 | 15,0 | 38 | 1 |
| 174B 28x1 | 28 | 808 | 18,0 | 15,0 | 38 | 1 |
| 174B 30x11/4 | 30 | 710 | 23,0 | 18,0 | 47 | 1 1/4 |
| 174B 38x11x2 | 38,0 | - | 23 | 18,0 | - | 1 1/2 |
